| Bellows for Automobiles |
|
 TECHNICAL
FEATURES |
- Very low stiffness in axial, lateral and bending provides
excellent decoupling effects
- Decoupling of large exhaust system movements and engine
vibrations in mainly lateral and bending direction
- Gas tight connection
- High temperature resistance
- Good corrosion resistance
- Application for all engine types
|
|
| |
| STANDARD
PROUCTS IN MASS PRODUCTION |
 |
- Basic Material
| Bellows |
: STS 304 or 321 |
| Braid |
: STS 304
 0.4
x12x48 or
0.4x9x64 |
| Cap |
aluminum coated steel |
- Available with Inner braid liner or Interlok liner
|
|
| Products
in Inch size |
|
|

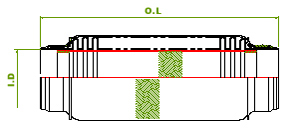

| Nominal Inside
Diameter I.D |
Overall Length O.L |
|
| 1 1/2"
(38.6 mm) |
4" (102 mm) |
| 6" (152 mm) |
| 8" (203 mm) |
| 10" (254 mm) |
| 1 3/4"
(44.9 mm) |
4" (102 mm) |
| 6" (152 mm) |
| 8" (203 mm) |
| 10" (254 mm) |
|
|
|
| Nominal Inside
Diameter I.D |
Overall Length O.L |
|
|
2" (51.3 mm) |
4" (102 mm) |
| 6" (152 mm) |
| 8" (203 mm) |
| 10" (254 mm) |
| 11" (280 mm) |
| 2 1/4"
(57.1 mm) |
4" (102 mm) |
| 6" (152 mm) |
| 8" (203 mm) |
| 10" (254 mm) |
|
|
|
|
| |
| Products in Metric size |
|
| Nominal Inside Diameter I.D |
Overall Length O.L |
|
43.2 mm
45.5 mm |
170 mm |
| 251 mm |
49.5mm
51.3mm |
160 mm |
| 210 mm |
| 251 mm |
54.5 mm
55.5 mm |
104 mm |
| 210 mm |
60.5 mm
61.2 mm |
251 mm |
|
|
|
|
| |
|
|
| |
|
